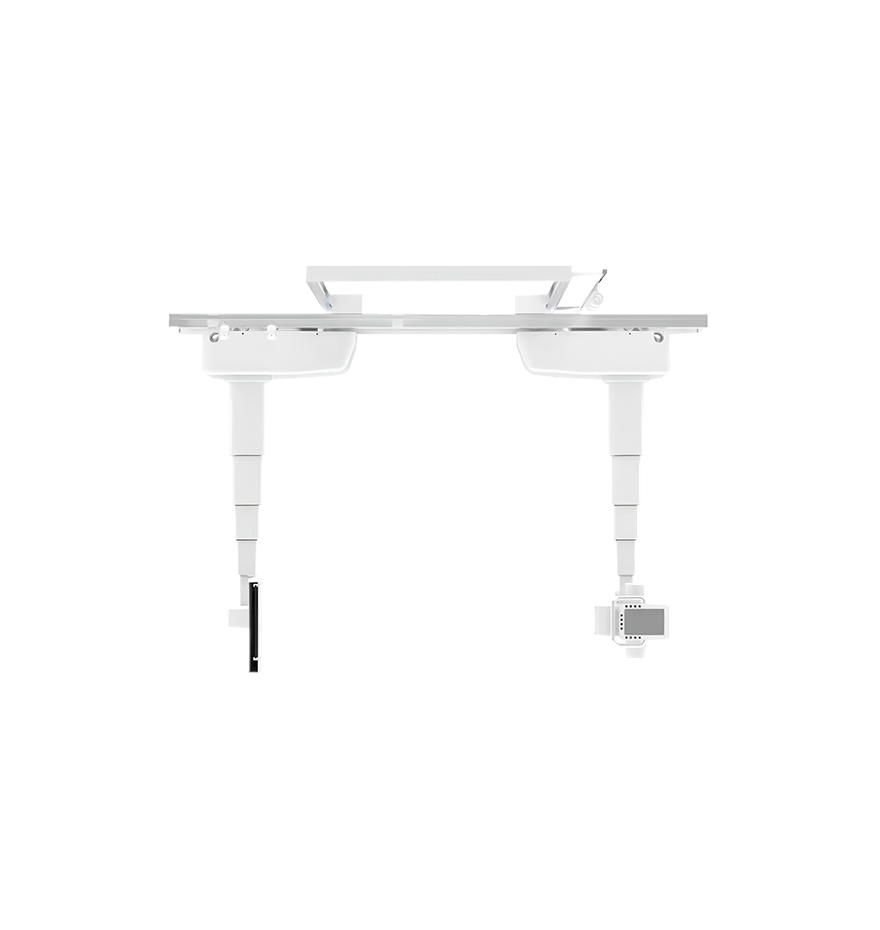

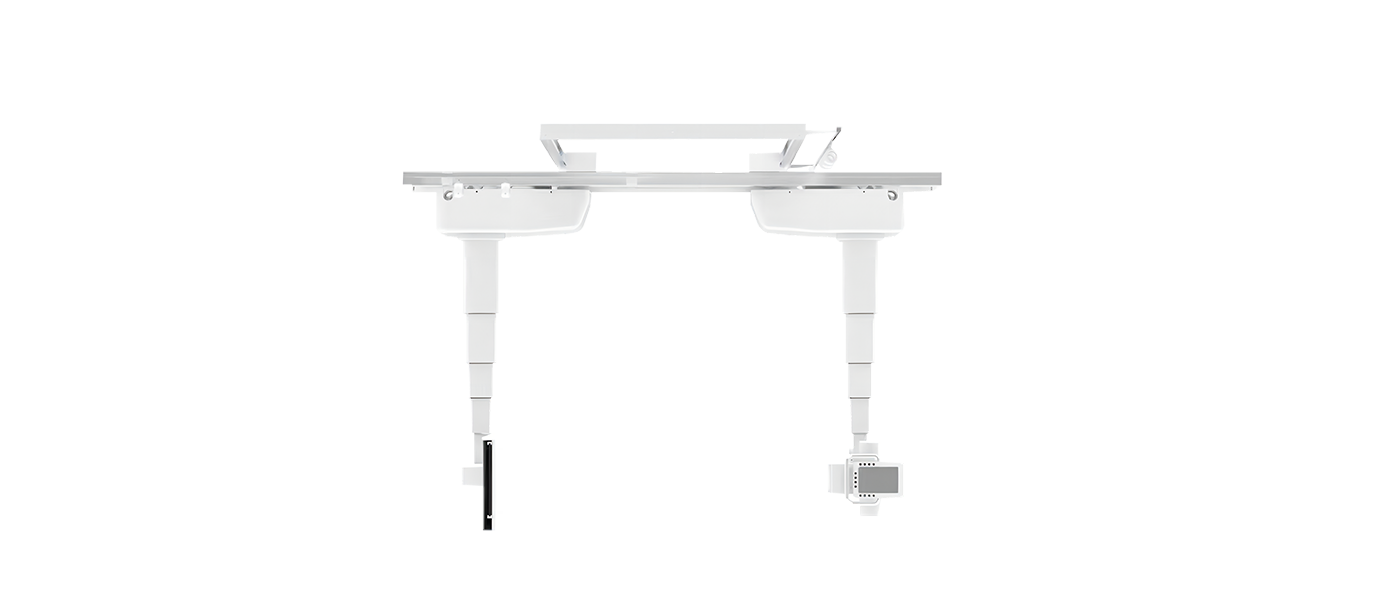

High-end suspension structure, to meet the needs of different body position photography
Skeletal System
Thoracic Cavity
Abdominal Organ
Functional Features
RV-80E animal digital radiography system is a suspended large animal digital X-ray machine.
High-end suspended structure, to meet the needs of different body position photography.
Suitable for photography of large-sized animals, kV range 40kV~150kV, mAs range 0.1mAs~1000mAs, sufficient penetration and exposure.
Using animal-specific DR software, it can realize clear and stable images while reducing the radiation dose.
Optional

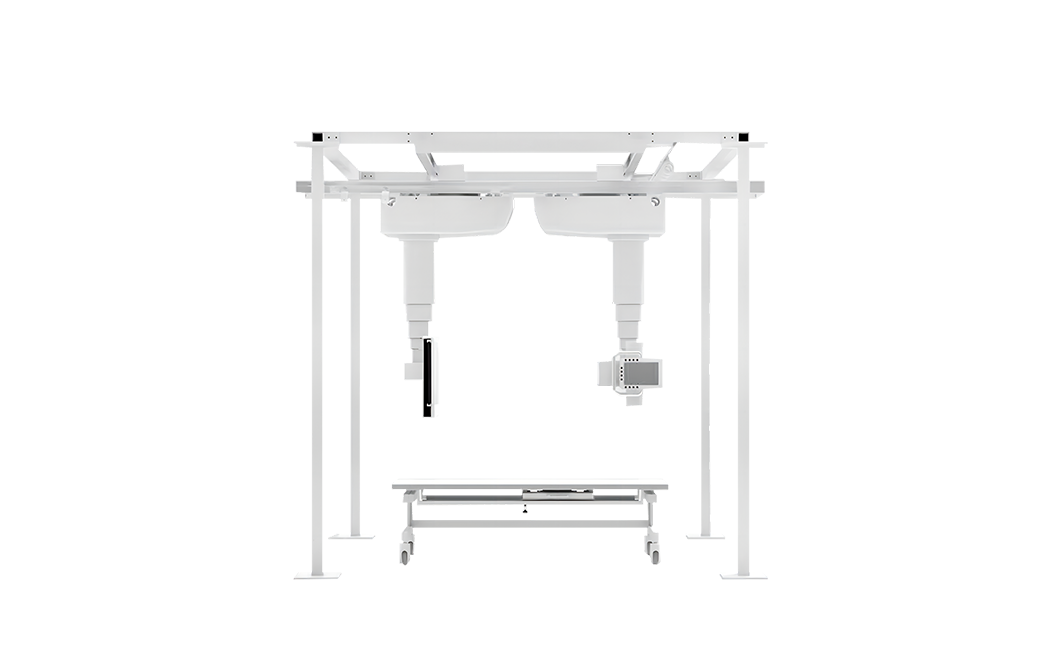

Camera beds and gantries
Appearance Display
High voltage generator

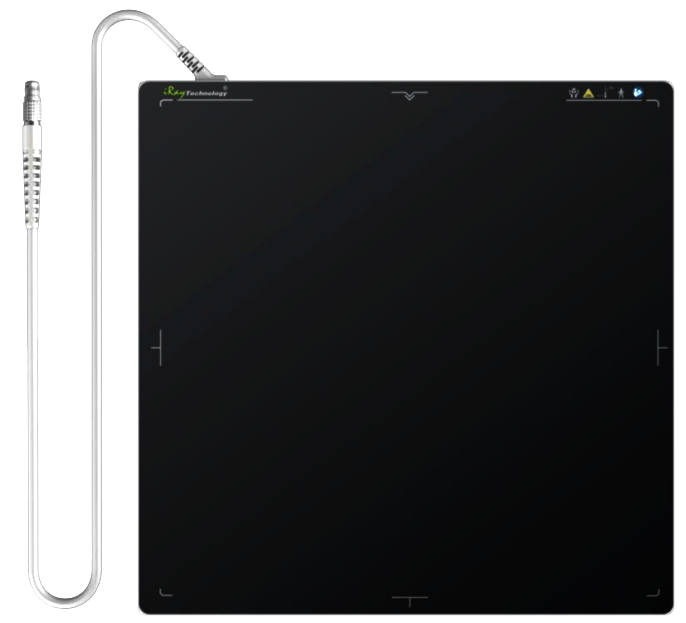

Flat panel detector

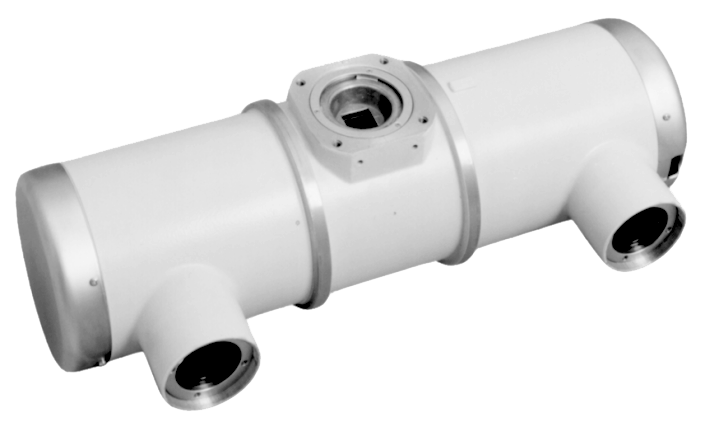

X-ray tube assembly
80kW Ultra High Power High Frequency High Voltage Generator
17in×17in large imaging area to meet the requirements of multi-scene clinical photography
139μm pixel size, 16-bit ADC HD image detail
Dual Focus, High Heat
Dual focus: small focus 0.6mm, large focus 1.2mm, realizing the best image resolution and loading power balance.
High thermal capacity: the thermal capacity of the bulb tube reaches 400kHU, realizing more stable continuous exposure performance and better meeting the requirements of continuous work.
